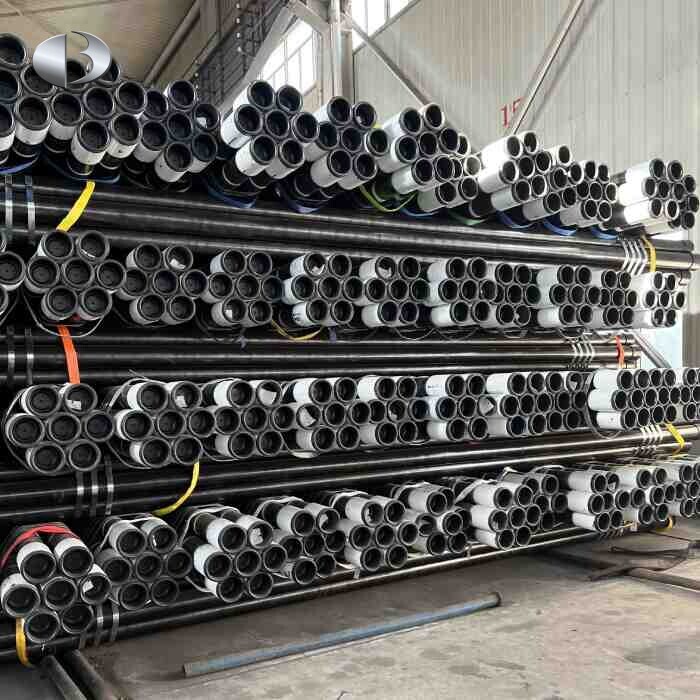

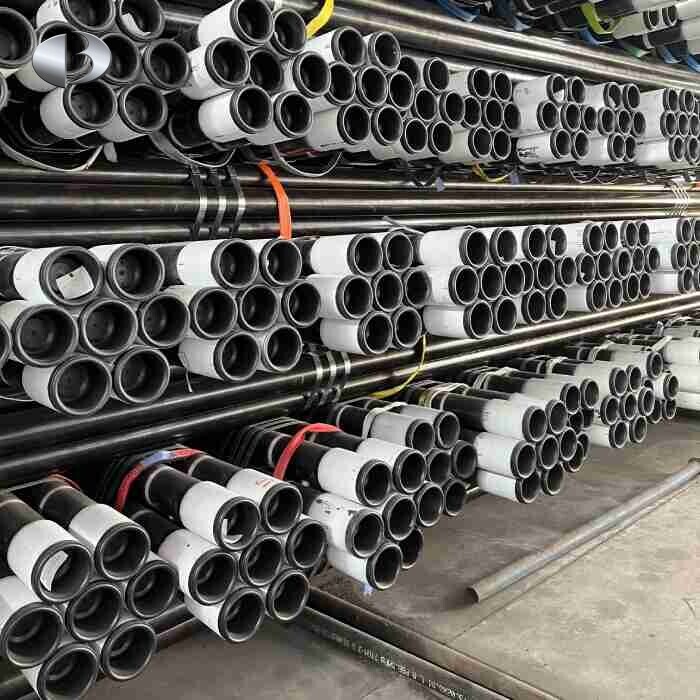

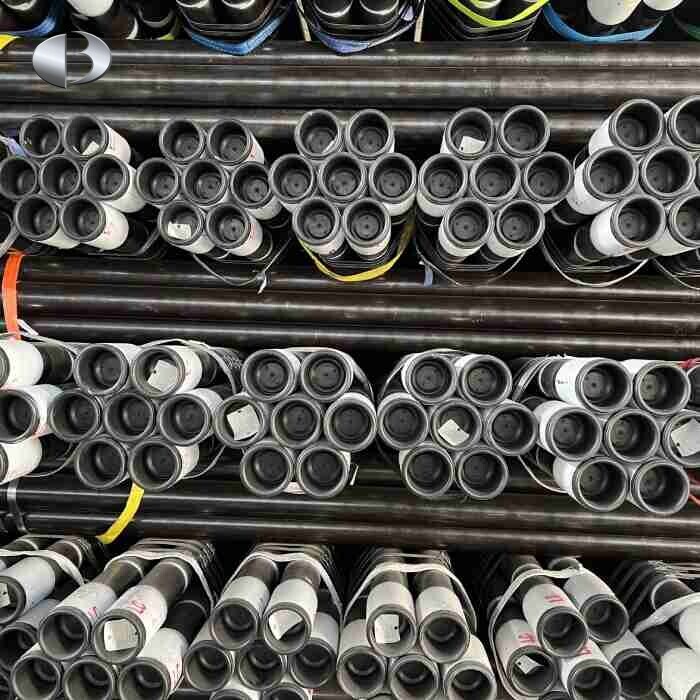

API 5CT Casing Pipe

API 5CT Casing Pipe is a pipe used to support the well wall and protect the wellbore from collapse. It has high strength, high weight, and good bearing capacity and stability. During drilling, casing can effectively protect the wellbore in the outermost layer, isolate multiple layers, and act as a fluid isolation and support for the well structure.

Different minimum order quantities lead to different product prices
If you need it, please click below to get a free quote

Product Parameters

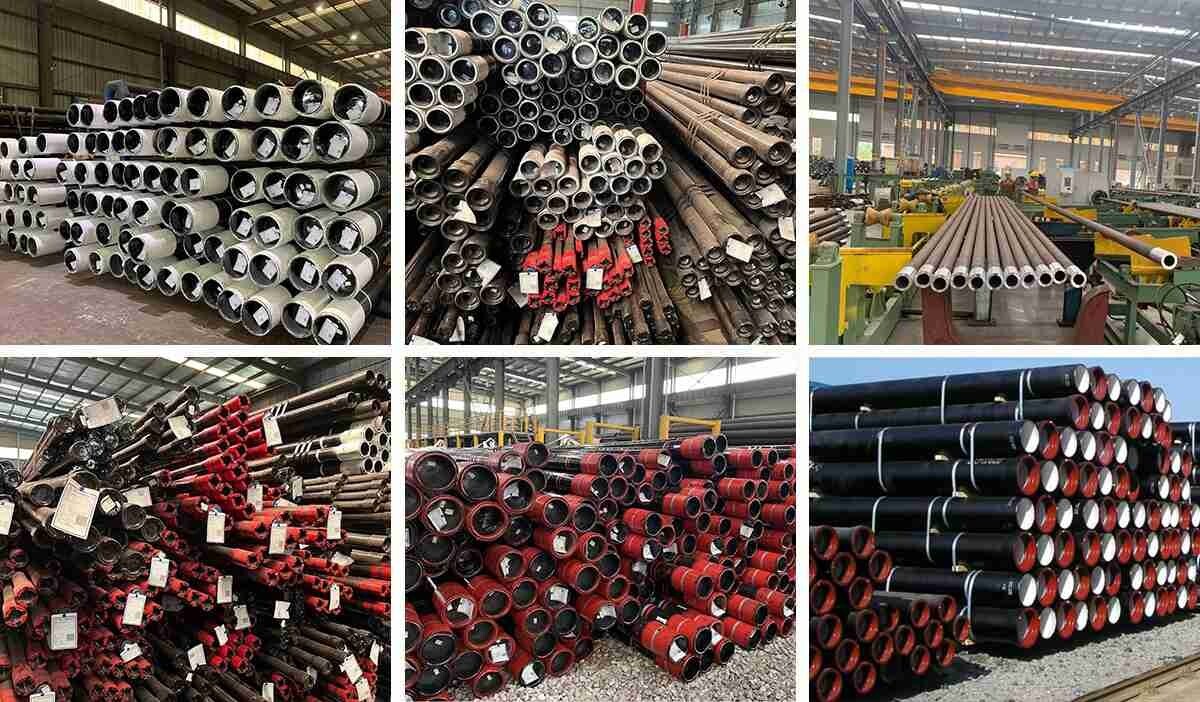

Product Display

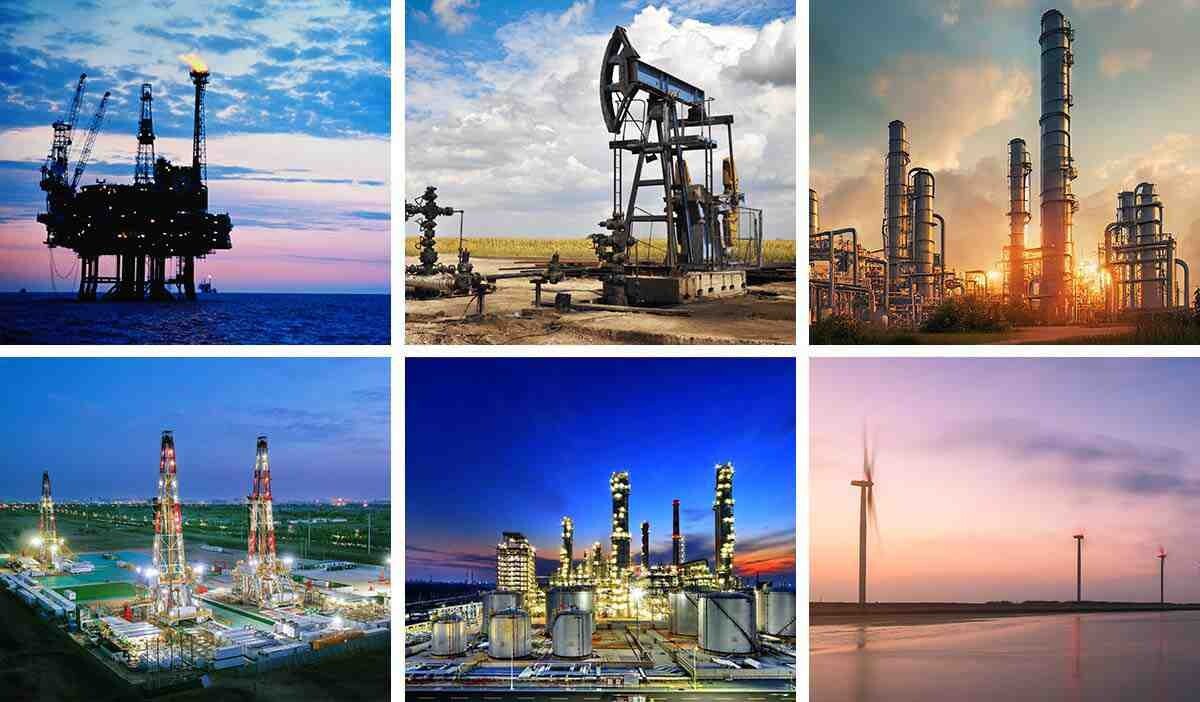

Application

Package

Pipe type: Oil casing, API 5CT Casing Pipe, API Spec 5CT J55 K55 N80 L80 casing
Outer diamater (OD): 114.30mm-508 mm
Wall thickness (WT): 5.21mm-16.13mm
Length :R1; R2; R3
Standard: API 5CT PSL1/PSL2 J55, K55,N80-1,N80-Q,
API 5CT PSL1/PSL2 L80-1, L80-9Cr,L80-13Cr,C90, C95, P110, Q125
Thread type: STC, LTC, BTC, VAM TOP equivalent, New VAM equivalent, CS equivalent, HSC equivalent, NUE, EUE, LTC, XC
Thread: NUE, EUE, VAM, STC, LTC, BTC, XC, VAM TOP, NEW VAM, HYDRILL CS
Use: Casing is widely used to fix the wall or hole of oil and gas Wells, the diameter is larger than the tubing, including surface casing, technical casing and oil casing.

DN	O. D.		Weight		W. T.		End Machining Form
	O. D.		Weight		W. T.		Steel Grade
	in	mm	lb/ft	kg/m	in	mm	H40	J55	L80	N80	C90	P110
	in	mm	lb/ft	kg/m	in	mm	H40	K55	L80	N80	T95	P110
4-1/2	4.500	114.3	9.5	14.14	0.205	5.21	PS	PS	–	–	–	–
			10.5	15.63	0.224	5.69	–	PSB	–	–	–	–
			11.6	17.26	0.25	6.35	–	PSLB	PLB	PLB	PLB	PLB
			13.5	20.09	0.29	7.37	–	–	PLB	PLB	PLB	PLB
			15.1	22.47	0.337	9.56	–	–	–	–	–	PLB
5	5.000	127	11.5	17.11	0.22	5.59	–	PS	–	–	–	–
			13	19.35	0.253	6.43	–	PSLB	–	–	–	–
			15	22.32	0.296	7.52	–	PSLB	PLB	PLB	PLBE	PLB
			18	26.79	0.362	9.19	–	–	PLB	PLB	PLBE	PLB
			21.4	31.85	0.437	11.1	–	–	PLB	PLB	PLB	PLB
			23.2	34.53	0.478	12.14	–	–	–	–	PLB	–
			24.1	35.86	0.5	12.7	–	–	–	–	PLB	–
5-1/2	5.500	139.7	14	20.83	0.244	6.2	PS	PS	–	–	–	–
			15.5	23.07	0.275	6.98	–	PSLB	–	–	–	–
			17	25.3	0.304	7.72	–	PSLB	PLB	PLB	PLBE	PLB
			20	29.76	0.361	9.17	–	–	PLB	PLB	PLBE	PLB
			23	34.23	0.415	10.54	–	–	PLB	PLB	PLBE	PLB
			26.8	39.88	0.5	12.7	–	–	–	–	–	–
			29.7	44.2	0.562	14.27	–	–	–	–	–	–
			32.6	48.51	0.625	15.88	–	–	–	–	–	–
			35.3	52.53	0.687	17.45	–	–	–	–	–	–
			38	56.55	0.75	19.05	–	–	–	–	–	–
			40.5	60.27	0.812	20.62	–	–	–	–	–	–
			43.1	64.14	0.875	22.22	–	–	–	–	–	–
6-5/8	6.625	168.28	20	29.76	0.288	7.32	PS	PSLB	–	–	–	–
			24	35.72	0.352	8.94	–	PSLB	PLB	PLB	PLBE	PLB
			28	41.67	0.417	10.59	–	–	PLB	PLB	PLBE	PLB
			32	47.62	0.475	12.06	–	–	PLB	PLB	PLBE	PLB
7	7.000	177.8	17	25.3	0.231	5.87	PS	–	–	–	–	–
			20	29.76	0.272	6.91	PS	PS	–	–	–	–
			23	34.23	0.317	8.05	–	PSLB	PLB	PLB	PLBE	–
			26	38.69	0.362	9.19	–	PSLB	PLB	PLB	PLBE	PLB
			29	43.16	0.408	10.36	–	–	PLB	PLB	PLBE	PLB
			32	47.62	0.453	11.51	–	–	PLB	PLB	PLBE	PLB
			35	52.09	0.498	12.65	–	–	PLB	PLB	PLBE	PLB
			38	56.55	0.54	13.72	–	–	PLB	PLB	PLBE	PLB
			42.7	63.54	0.625	15.88	–	–	–	–	–	–
			46.4	69.05	0.687	17.45	–	–	–	–	–	–
			50.1	74.56	0.75	19.05	–	–	–	–	–	–
			53.6	79.77	0.812	20.62	–	–	–	–	–	–
			57.1	84.97	0.875	22.22	–	–	–	–	–	–
7-5/8	7.625	193.68	24	35.72	0.3	7.62	PS	–	–	–	–	–
			26.4	39.29	0.328	8.33	–	PSLB	PLB	PLB	PLBE	PLB
			29.7	44.2	0.375	9.52	–	–	PLB	PLB	PLBE	PLB
			33.7	50.15	0.43	10.92	–	–	PLB	PLB	PLBE	PLB
			39	58.05	0.5	12.7	–	–	PLB	PLB	PLBE	PLB
			42.8	63.69	0.562	14.27	–	–	PLB	PLB	PLB	PLB
			45.3	67.41	0.595	15.11	–	–	PLB	PLB	PLB	PLB
			47.1	70.09	0.625	15.88	–	–	PLB	PLB	PLB	PLB
			51.2	76.19	0.687	17.45	–	–	–	–	–	–
			55.3	80.3	0.75	19.05	–	–	–	–	–	–
8-5/8	8.625	219.08	24	35.72	0.264	6.71	–	PS	–	–	–	–
			28	41.62	0.304	7.72	PS	–	–	–	–	–
			32	47.62	0.352	8.94	PS	PSLB	–	–	–	–
			36	53.57	0.4	10.16	–	PSLB	PLB	PLB	PLBE	PLB
			40	59.53	0.45	11.43	–	–	PLB	PLB	PLBE	PLB
			44	65.48	0.5	12.7	–	–	PLB	PLB	PLBE	PLB
			49	72.92	0.557	14.15	–	–	PLB	PLB	PLBE	PLB
9-5/8	9.625	244.48	32.3	48.07	0.312	7.92	PS	–	–	–	–	–
			36	53.57	0.352	8.94	PS	PSLB	–	–	–	–
			40	59.53	0.395	10.03	–	PSLB	PLB	PLB	PLBE	–
			43.5	64.73	0.435	11.05	–	–	PLB	PLB	PLBE	PLB
			47	69.94	0.472	11.99	–	–	PLB	PLB	PLBE	PLB
			53.5	79.62	0.545	13.84	–	–	PLB	PLB	PLBE	PLB
			58.4	86.91	0.595	15.11	–	–	PLB	PLB	PLB	PLB
			59.4	88.4	0.609	15.47	–	–	–	–	–	–
			64.9	96.58	0.672	17.07	–	–	–	–	–	–
			70.3	104.62	0.734	18.64	–	–	–	–	–	–
			75.6	112.5	0.797	20.24	–	–	–	–	–	–
10-3/4	10.750	273.05	32.75	48.74	0.279	7.09	PS	–	–	–	–	–
			40.5	60.27	0.35	8.89	PS	PSB	–	–	–	–
			15.5	67.71	0.4	10.16	–	PSB	–	–	–	–
			51	75.9	0.45	11.43	–	PSB	PSB	PSB	PSBE	PSB
			55.5	82.59	0.495	12.57	–	–	PSB	PSB	PSBE	PSB
			60.7	90.33	0.545	13.84	–	–	–	–	PSBE	PSB
			65.7	97.77	0.595	15.11	–	–	–	–	PSB	PSB
			73.2	108.93	0.672	17.07	–	–	–	–	–	–
			79.2	117.86	0.734	18.64	–	–	–	–	–	–
			85.3	126.94	0.797	20.24	–	–	–	–	–	–
11-3/4	11.750		42	62.5	0.333	8.46	PS	–	–	–	–	–
			47	69.94	0.375	20.24	–	–	–	–	–	–
			54	80.36	0.435	8.46	–	–	–	–	–	–
			60	89.29	0.489	9.53	–	–	–	–	–	–
			65	96.73	0.534	11.05	–	–	–	–	–	–
			71	105.66	0.582	14.42	–	–	–	–	–	–
13-3/8	13.375	339.73	48	71.43	0.33	8.38	PS	–	–	–	–	–
			54.5	81.1	0.38	9.65	–	PSB	–	–	–	–
			61	90.78	0.43	10.92	–	PSB	–	–	–	–
			68	101.19	0.48	12.19	–	PSB	PSB	PSB	PSB	PSB
			72	107.15	0.514	13.06	–	–	PSB	PSB	PSB	PSB
16	16.000	406.4	65	96.73	0.375	9.53	PS	–	–	–	–	–
			75	111.61	0.438	11.13	–	PSB	–	–	–	–
			84	125.01	0.495	12.57	–	PSB	–	–	–	–
			109	162.21	0.656	16.66	–	P	P	P	–	P
18-5/8	18.625	473.08	87.5	130.21	0.435	11.05	PS	PSB	–	–	–	–
20	20.000	508	94	139.89	0.438	11.13	PSL	PSLB	–	–	–	–
			106.5	158.49	0.5	12.7	–	PSLB	–	–	–	–
			133	197.93	0.635	16.13	–	PSLB	–	–	–	–
P——Plain；S——Short-thread；L——Long-thread；B——Buttress thread；E——Extreme thread
